Weld Calculation
Calculation of fillet welds according to NEN-EN 1993-1-8 + C2/NB
With this module you can verify and/or design fillet welds according to NEN-EN 1993-1-8.
Verification according to NEN-EN 1993-1-8 + C2 / national annex
- Checking and designing
- Forces and moments: Fx,Ed, Fy,Ed, Fz,Ed, Mx,Ed, My,Ed and Mz,Ed
- No 'black-box' calculation but clear output with written out NEN-EN 1993 formulas

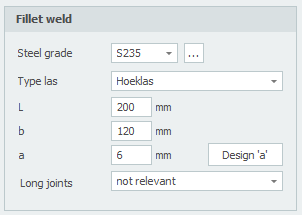

Input
| Field | Description |
|---|---|
| Steel grade | Steel grade of the weakest connected part |
| L | Length of the welded part, or the length of the weld, in mm |
| b | Thickness of the welded part in mm |
| a | Applied throat thickness in mm |
 |
Design the throat thickness from the entered forces |
| Long joint | Not applicable / Lapped joint / Fillet welds connecting transverse stiffeners in plate girders. This reduces the effective weld length according to art. 4.11 |

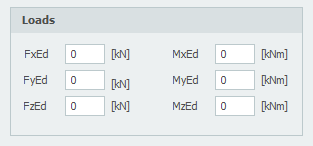

Forces and moments
| Field | Description |
|---|---|
| Fx,Ed, Fy,Ed, Fz,Ed | Design forces in kN |
| Mx,Ed, My,Ed, Mz,Ed | Design moments in kNm |
