Bolt Calculation
Calculation of resistances of a single bolt
With this module you can calculate the allowable forces of a single bolt according to NEN-EN 1993-1-8.
Verification according to NEN-EN 1993-1-8 + C2 / national annex
- No 'black-box' calculation but clear output with written out NEN-EN 1993 formulas

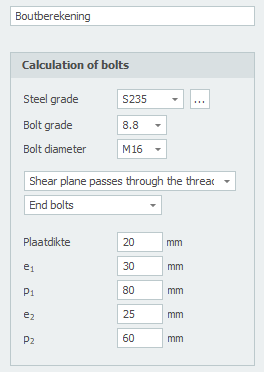

Input
| Field | Description |
|---|---|
| Steel grade | Steel grade of the connected part |
| Bolt grade | Choice of the bolt grade |
| Bolt diameter | Choice of the bolt diameter |
| Shear plane | Shear plane through the thread / Shear plane through the shank |
| Bolt position | End bolt / Inner bolt / Edge bolt |
| Plate thickness | Plate thickness of the connected part |
| e1 | End distance in the direction of load transfer |
| p1 | Spacing in the direction of load transfer |
| e2 | Edge distance perpendicular to the direction of load transfer |
| p2 | Spacing perpendicular to the direction of load transfer |
